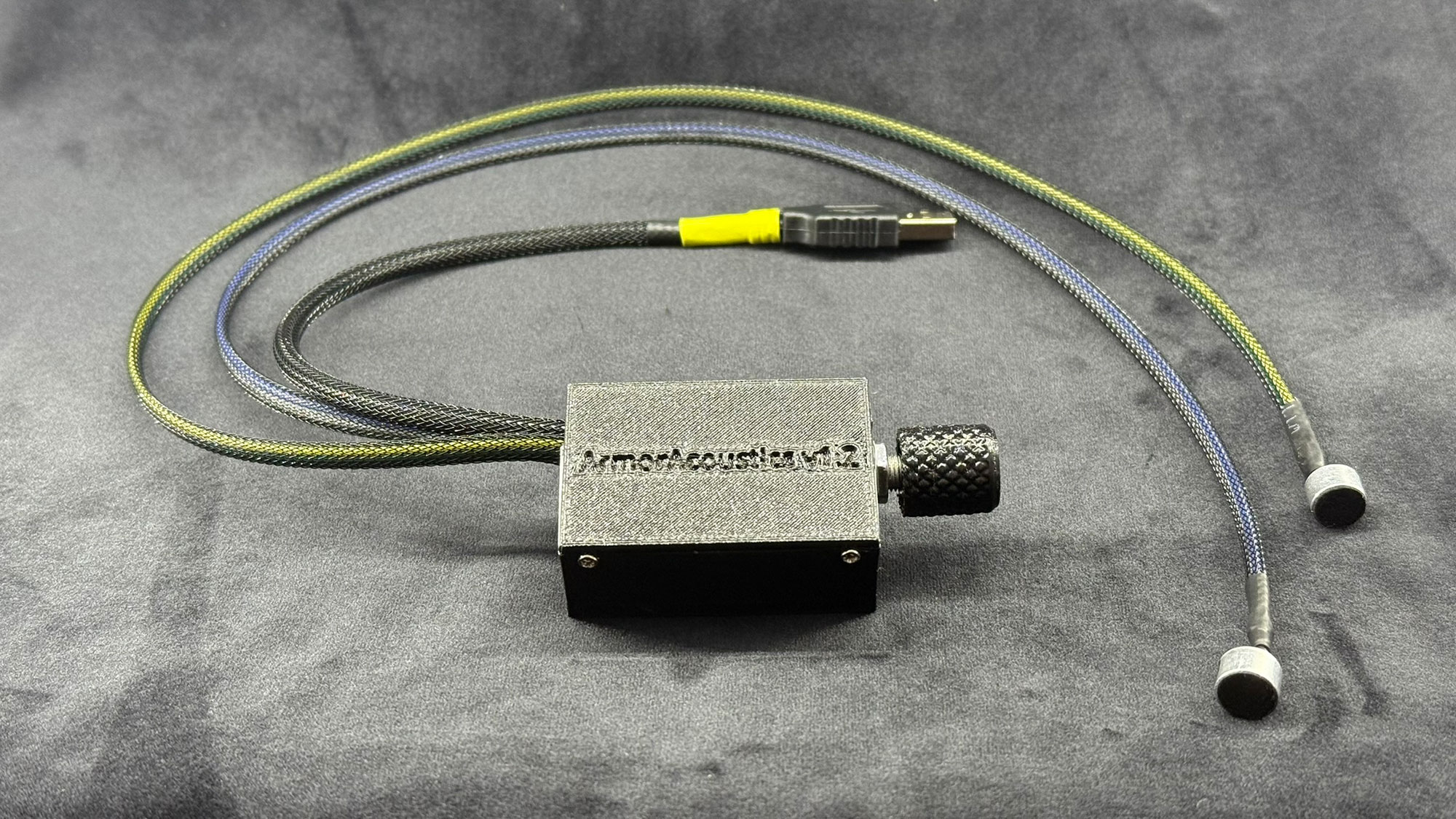

Armor Acoustics

Description

Armor Acoustics – Enhance Your Hearing, Stay in Character

Cosplaying in a full helmet looks amazing—but it can make hearing the world around you a challenge. Armor Acoustics is the ultimate solution for helmeted cosplayers, offering external sound amplification so you never miss a conversation.

Equipped with dual microphones, Armor Acoustics discreetly captures ambient sound, transmitting it directly to your wired headphones for a seamless and natural listening experience. The adjustable volume control lets you fine-tune your hearing, whether you’re in a loud convention hall or an intense bounty hunt.

• Designed for Cosplayers: Designed to work with Mandalorian helmets, but it should work with most cosplay helmets.
• Stealth Microphone Placement: Easily hides in vents, ear caps, or helmet crevices. Microphones are 9mmx7mm.
• Simple Setup: Attach the sticky back hook and loop on the control box, and use the zip-tie holders to route and attach the microphone wiring inside your helmet. You can also use other adhesives like hot glue etc.
• Easy Operation: Just plug in power, your headphones, and adjust the volume.
• Convention-Ready: Hear conversations, panel discussions, and background noise without breaking character.
• Durable & Lightweight: Built for long wear without adding extra bulk to your helmet.

Step up your cosplay game and experience enhanced situational awareness without sacrificing immersion.

Hear the battle.

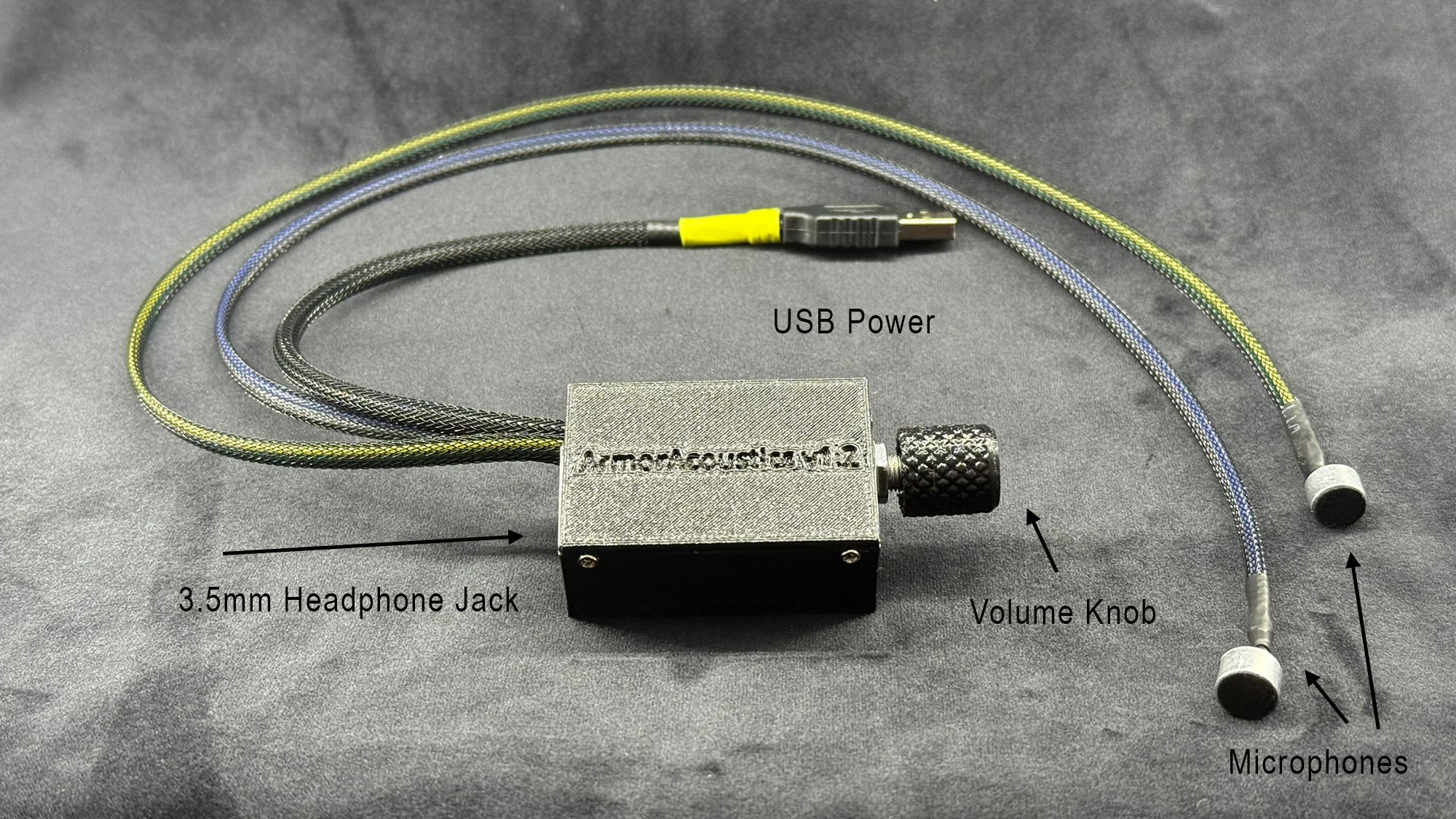

Armor Acoustics Specifications:

Operation Voltage: 3-5v DC

Power Connector: Comes in USB-A or USB-C

Power Output: Stereo audio, up to 80mW output

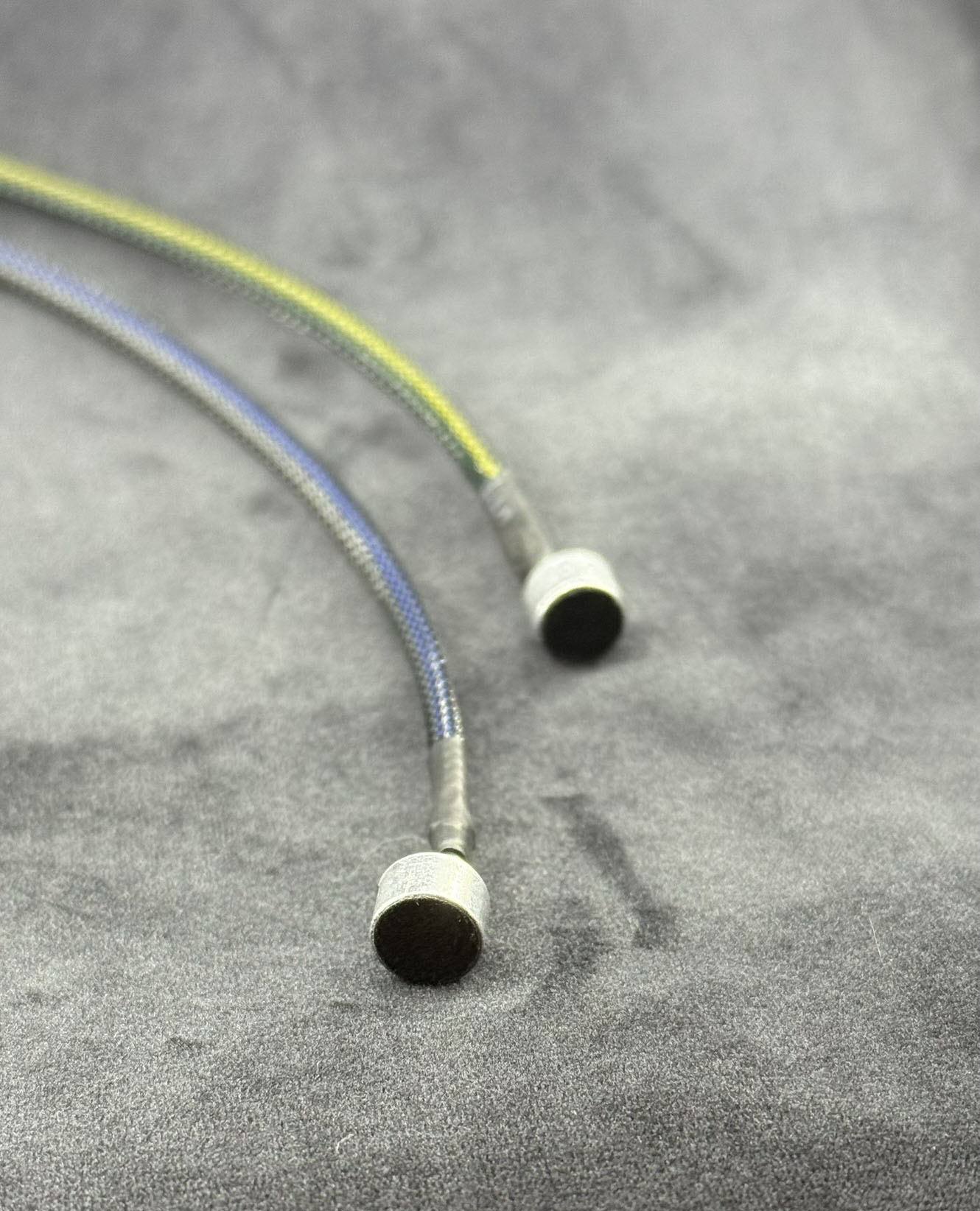

Microphone Type: Electret 9mmx7mm

Microphone Wire Length: Left 11 inches from control, Right 22 inches (this is a handmade item, wire lengths may vary slightly)

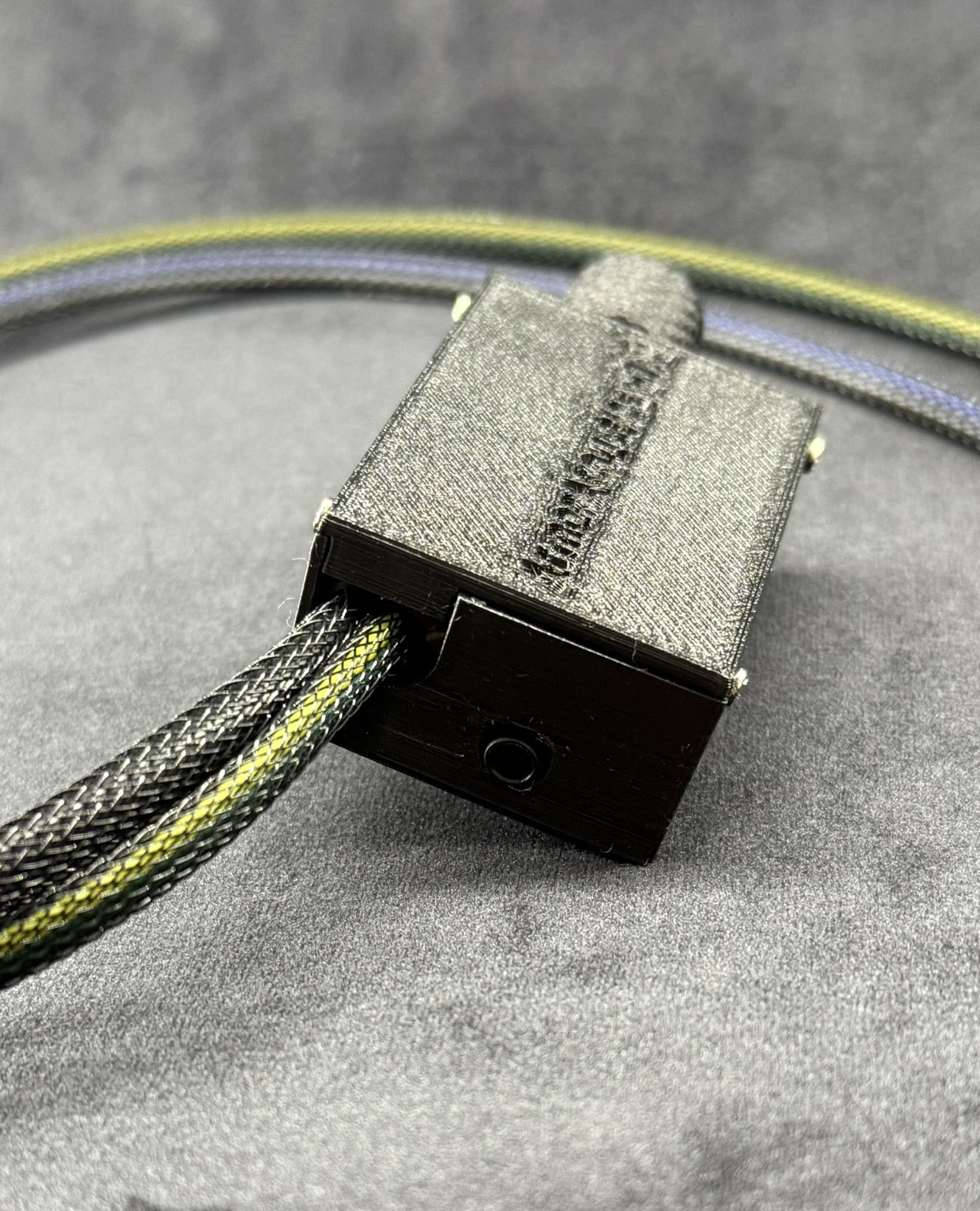

Enclosure: 3D printed in black PETG (53mm x 28mm x 21mm)



Note: Armor Acoustics was designed to be installed on the left side of the helmet that is why the left microphone wiring is shorter for that side. If you would like it made for the right side make sure you select the proper box when adding to your cart. You can always shoot us a message as well. If you need longer or shorter wire lengths for the microphones leave a comment or shoot us an email with the length(s) you need and we can probably make it happen.





Installation:

The Armor Acoustics module comes pre-made and all-together as one piece, with an optional strip of hook and loop (velcro) attached and a few adhesive backed zip-tie anchors for strapping down the wiring. The only installation required is adding it into your helmet, which is going to be different for everyone.

• Simply peel back the adhesive on the hook and loop strip and place it in a good spot inside your helmet.
• Place the microphones in a good spot, if you cannot hide them more extensively they can be placed near the bottom of the helmet on the inside and they should work well enough.
• Use the zip-tie anchors to hold the microphones in place, route the cabling through your helmet and secure it using the remaining anchors. Hot glue also works really well.
• Simply plug in your headphones into the Armor Acoustics module and the USB connector into a 5v DC USB power bank and turn the volume knob. You should feel and hear a click when turning on and off. Adjust the volume to your preference.



NOTE: Some USB battery banks require a specific power draw to stay on/enabled. The power draw of the Armor Acoustics module is very low, so low that it may not be enough to keep these types of power banks on. To ensure proper operation it is best to use the Armor Acoustics with a USB power bank with an on/off switch.



Disclaimer: Armor Acoustics is designed exclusively for cosplay and convention use and is not intended for real-world applications, including but not limited to motorcycle helmets, industrial safety gear, or tactical equipment. This product is not a certified hearing device and should not be relied upon in situations requiring situational awareness for personal safety. The user assumes all responsibility for proper and intended use.
